Kubernetes Logging with Fluent Bit

Docker supports various logging drivers (e.g., syslog, journal, and json-file), and allows users to configure the driver by passing flags to the docker daemon at startup.

Kubernetes defaults to the "json-file" logging driver, in which docker writes the stdout/stderr streams to a file in the json format as shown below.

In a production cluster, logs are usually collected, aggregated, and shipped to a remote store where advanced analysis/search/archiving functions are supported. In kubernetes, the default cluster-addons includes a per-node log collection daemon, fluentd. To facilitate the log collection, kubelet creates symbolic links to all the docker containers logs under /var/log/containers with pod and container metadata embedded in the filename.

The fluentd daemon watches the /var/log/containers/ directory and extract the metadata associated with the log from the path.

Use crictl to determine the log path of containers:

Kubelet will be configured with a root directory (e.g., /var/log/pods or /var/lib/kubelet/logs/) to store all container logs. Below is an example of a path to the log of a container in a pod.

In CRI, this is implemented by setting the pod-level log directory when creating the pod sandbox, and passing the relative container log path when creating a container.

The runtime should decorate each log entry with a RFC 3339Nano timestamp prefix, the stream type (i.e., "stdout" or "stderr"), the tags of the log entry, the log content that ends with a newline.

The tags fields can support multiple tags, delimited by :. Currently, only one tag is defined in CRI to support multi-line log entries: partial or full. Partial (P) is used when a log entry is split into multiple lines by the runtime, and the entry has not ended yet. Full (F) indicates that the log entry is completed — it is either a single-line entry, or this is the last line of the multiple-line entry.

For example,

Use crictl to determine the log path of containers:

Every incoming piece of data that belongs to a log or a metric that is retrieved by Fluent Bit is considered an Event or a Record.

As an example consider the following content of a Syslog file:

It contains four lines and all of them represents four independent Events.

Internally, an Event always has two components (in an array form):

In some cases it is required to perform modifications on the Events content, the process to alter, enrich or drop Events is called Filtering.

There are many use cases when Filtering is required like:

Every Event that gets into Fluent Bit gets assigned a Tag. This tag is an internal string that is used in a later stage by the Router to decide which Filter or Output phase it must go through.

Most of the tags are assigned manually in the configuration. If a tag is not specified, Fluent Bit will assign the name of the Input plugin instance from where that Event was generated from.

The Timestamp represents the time when an Event was created. Every Event contains a Timestamp associated. The Timestamp is a numeric fractional integer in the format:

Fluent Bit allows to deliver your collected and processed Events to one or multiple destinations, this is done through a routing phase. A Match represent a simple rule to select Events where its Tags matches a defined rule.

Source events can have or not have a structure. A structure defines a set of keys and values inside the Event message. As an example consider the following two messages:

At a low level both are just an array of bytes, but the Structured message defines keys and values, having a structure helps to implement faster operations on data modifications.

Fluent Bit provides different Input Plugins to gather information from different sources, some of them just collect data from log files while others can gather metrics information from the operating system. There are many plugins for different needs.

When an input plugin is loaded, an internal instance is created. Every instance has its own and independent configuration. Configuration keys are often called properties.

Dealing with raw strings or unstructured messages is a constant pain; having a structure is highly desired. Ideally we want to set a structure to the incoming data by the Input Plugins as soon as they are collected:

The Parser allows you to convert from unstructured to structured data. As a demonstrative example consider the following Apache (HTTP Server) log entry:

The above log line is a raw string without format, ideally we would like to give it a structure that can be processed later easily. If the proper configuration is used, the log entry could be converted to:

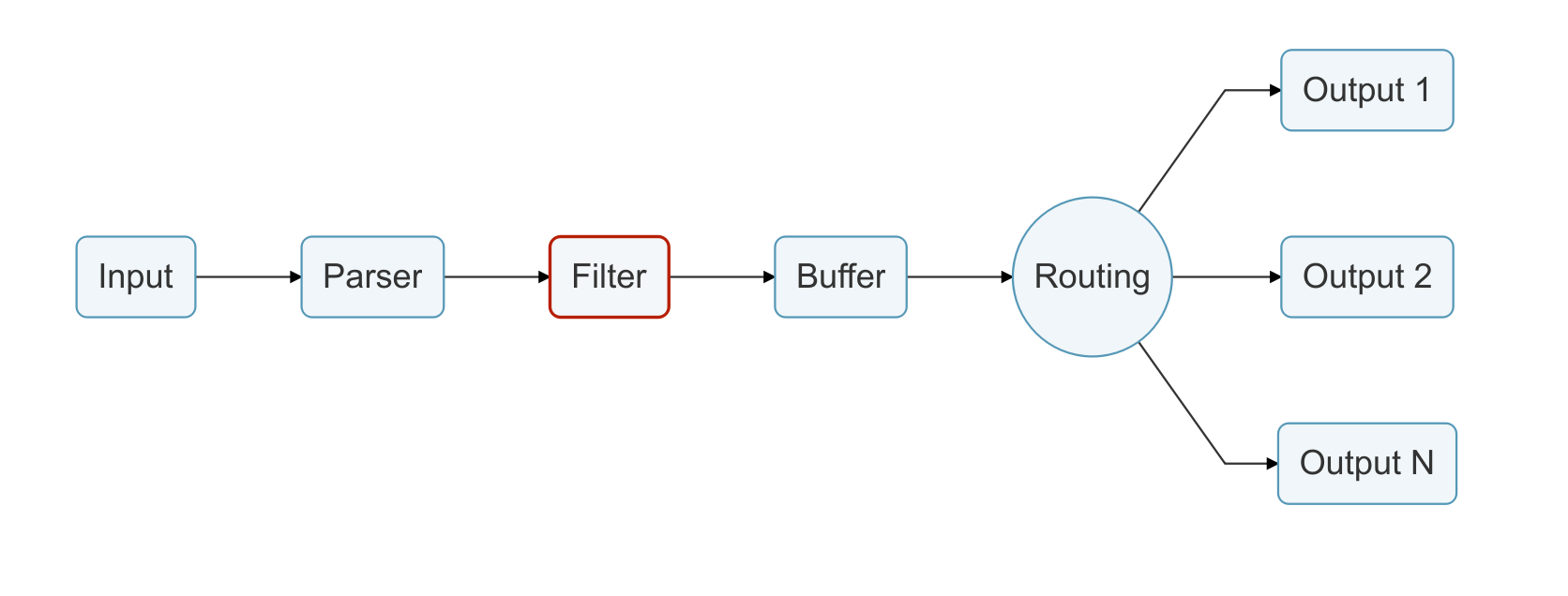

In production environments we want to have full control of the data we are collecting, filtering is an important feature that allows us to alter the data before delivering it to some destination.

Filtering is implemented through plugins, so each filter available could be used to match, exclude or enrich your logs with some specific metadata.

The buffer phase in the pipeline aims to provide a unified and persistent mechanism to store your data, either using the primary in-memory model or using the filesystem based mode.

The buffer phase already contains the data in an immutable state, meaning, no other filter can be applied.

Fluent Bit offers a buffering mechanism in the file system that acts as a backup system to avoid data loss in case of system failures.

Routing is a core feature that allows to route your data through Filters and finally to one or multiple destinations. The router relies on the concept of Tags and Matching rules.

When the data is generated by the input plugins, it comes with a Tag (most of the time the Tag is configured manually), the Tag is a human-readable indicator that helps to identify the data source.

In order to define where the data should be routed, a Match rule must be specified in the output configuration.

Consider the following configuration example that aims to deliver CPU metrics to an Elasticsearch database and Memory metrics to the standard output interface:

Routing works automatically reading the Input Tags and the Output Match rules. If some data has a Tag that doesn’t match upon routing time, the data is deleted.

Routing is flexible enough to support wildcard in the Match pattern. The below example defines a common destination for both sources of data:

The match rule is set to my_* which means it will match any Tag that starts with my_.

The output interface allows us to define destinations for the data. Common destinations are remote services, local file system or standard interface with others. Outputs are implemented as plugins and there are many available.

When an output plugin is loaded, an internal instance is created. Every instance has its own independent configuration. Configuration keys are often called properties.

A section is defined by a name or title inside brackets. Looking at the example above, a Service section has been set using [SERVICE] definition. Section rules:

A section may contain Entries, an entry is defined by a line of text that contains a Key and a Value, using the above example, the [SERVICE] section contains two entries, one is the key Daemon with value off and the other is the key Log_Level with the value debug. Entries rules:

Fluent Bit configuration files are based in a strict Indented Mode, that means that each configuration file must follow the same pattern of alignment from left to right when writing text. By default an indentation level of four spaces from left to right is suggested.

The JSON parser is the simplest option: if the original log source is a JSON map string, it will take it structure and convert it directly to the internal binary representation.

A simple configuration that can be found in the default parsers configuration file, is the entry to parse Docker log files (when the tail input plugin is used):

The following log entry is a valid content for the parser defined above:

After processing, it internal representation will be:

The time has been converted to Unix timestamp (UTC) and the map reduced to each component of the original message.

The regex parser allows to define a custom Ruby Regular Expression that will use a named capture feature to define which content belongs to which key name.

The following parser configuration example aims to provide rules that can be applied to a Nginx combined access log entry:

As an example, takes the following Nginx access log entry:

The above content do not provide a defined structure for Fluent Bit, but enabling the proper parser we can help to make a structured representation of it:

A common pitfall is that you cannot use characters other than alphabets, numbers and underscore in group names. For example, a group name like (?<user-name>.*) will cause an error due to containing an invalid character (-).

The systemd input plugin allows to collect log messages from the Journald daemon on Linux environments.

The tail input plugin allows to monitor one or several text files. It has a similar behavior like tail -f shell command.

The plugin reads every matched file in the Path pattern and for every new line found, it generates a new record. Optionally a database file can be used so the plugin can have a history of tracked files and a state of offsets, this is very useful to resume a state if the service is restarted.

If you are running Fluent Bit to process logs coming from containers like Docker or CRI, you can use the new built-in modes for such purposes. This will help to reassembly multiline messages originally split by Docker or CRI:

The two options separated by a comma means multi-format: try docker and cri multiline formats.
